Enhance your manufacturing with our premium SAE1075 Steel Band

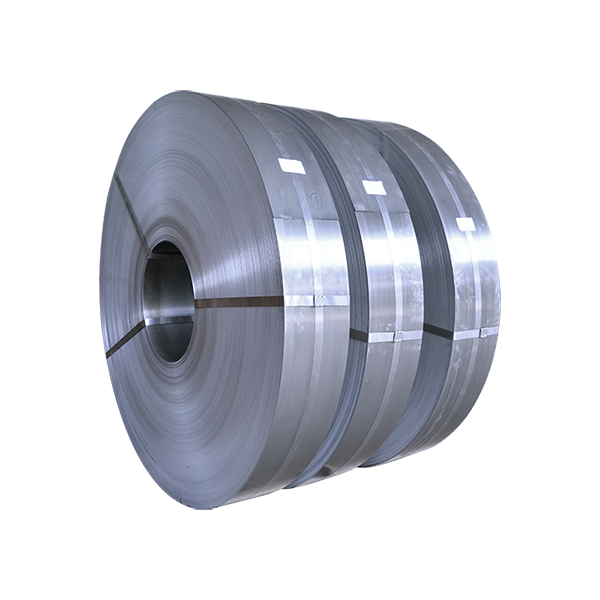

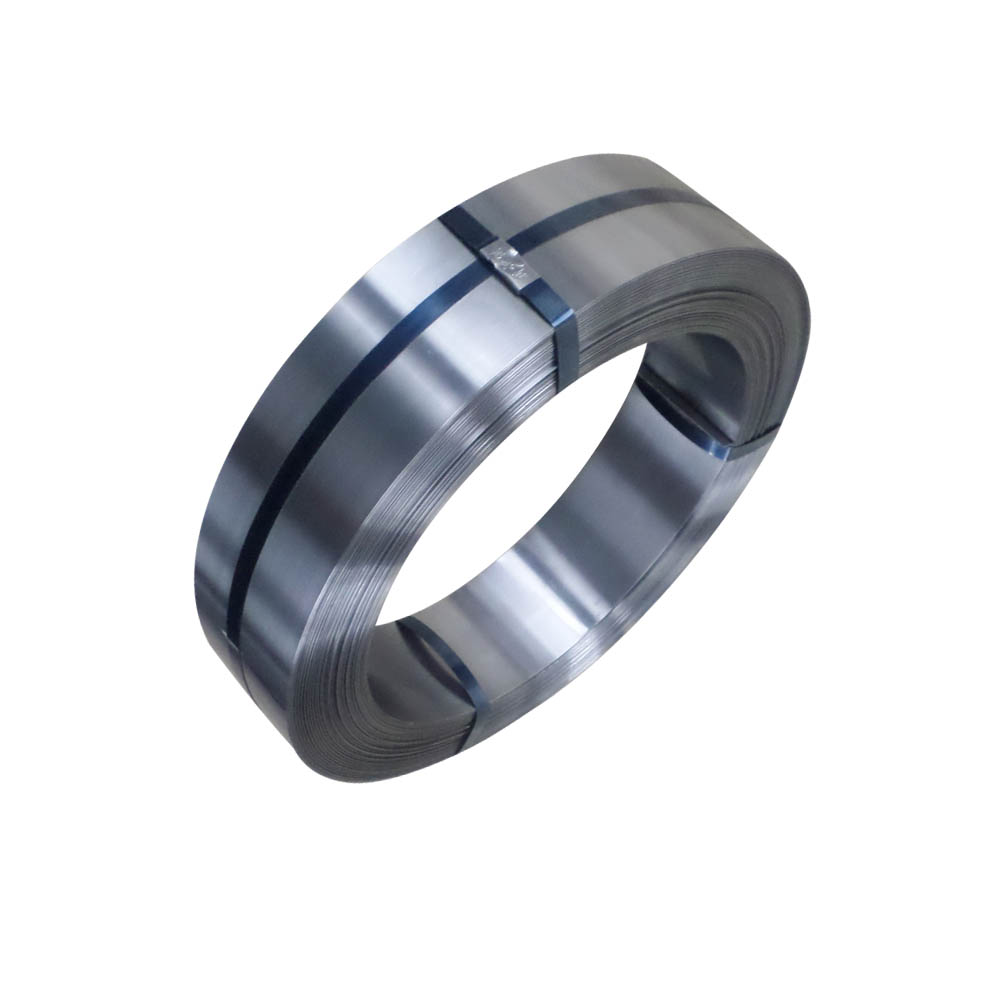

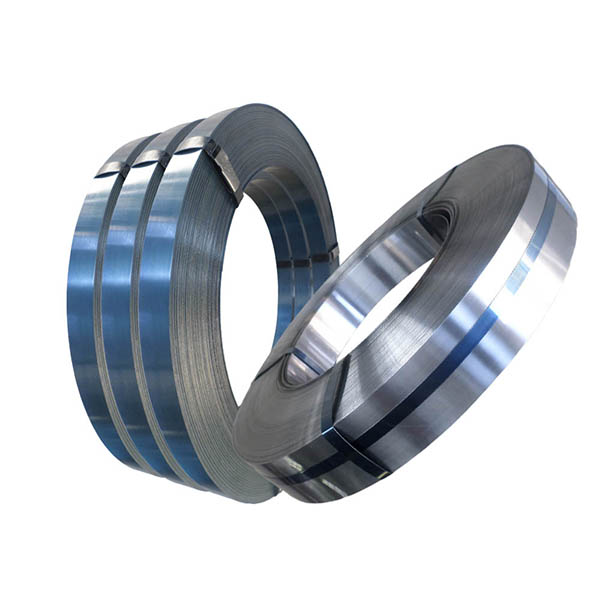

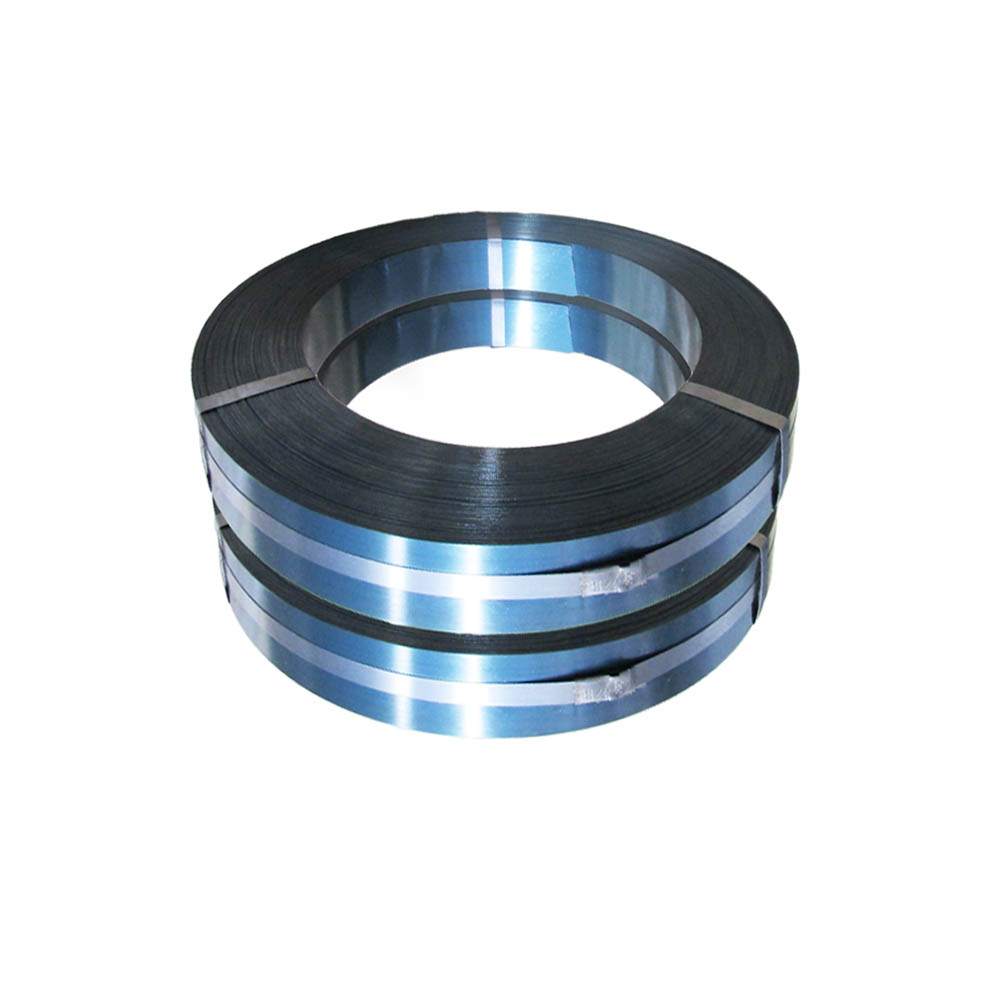

Our product is a high-carbon spring steel strip, processed via Cold Rolling followed by Hardening and Tempering (Quenched & Tempered) . This heat treatment process relieves internal stresses from rolling while achieving uniform hardness across the strip, eliminating distortion during your processing.
Why choose our Cold Rolled Hardened and Tempered Steel Strips?
SAE1075 Grade Guarantee: Strict chemical composition control ensures excellent fatigue resistance .
Superior Surface: Offered in Bright/Polished, Blue (Tempered), or Oxidized/Black finish.
Precision Tolerances: Suitable for high-speed stamping and forming.
Edge Condition: Available in slit round edge or square edge to protect tooling.
Key Specifications
|
Property |
Details |
|
Standard / Grade |
SAE 1075 / AISI 1075 / DIN CK75 / C75S / EN 10132-4 |
| Delivery Condition | Cold Rolled, Hardened and Tempered (Blue tempered / Polished) |
| Carbon Content | 0.70% - 0.80% |
| Hardness Range | 38 - 55 HRC (Customizable based on tempering temperature) |
| Tensile Strength | 1000 - 1350 MPa (Depending on hardness level) |
| Thickness | 0.10 mm - 6.0 mm |
| Width | 5 mm - 500 mm (Slit to size) |
| Edge Type | Slit edge, deburred edge, or round edge |
Chemical Composition - SAE 1075 / Based on SAE J403 standard
| Element | Composition % |
| Carbon (C) | 0.70 – 0.80 |
| Silicon (Si) | 0.15 – 0.35 |
| Manganese (Mn) | 0.50 – 0.80 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
Mechanical Properties
| Condition | Tensile Strength (Rm) | Hardness (HRC) | Elongation |
| Hardened & Tempered | 1200 - 2200 N/mm² | 45 - 55HRC | Low (Spring temper) |
| Annealed (Soft) | < 640 N/mm² | < 20 HRC | > 15% |
Thickness Tolerances
| Thickness (mm) | Tolerance (mm) for Width < 125mm |
| 0.15 - 0.25 | ± 0.008 / ± 0.01 |
| 0.25 - 0.40 | ± 0.01 / ± 0.012 |
| 0.40 - 0.60 | ± 0.015 |
| 0.60 - 1.00 | ± 0.02 |
| 1.00 - 2.00 | ± 0.025 |
Applications
Automotive: Clutch plates, diaphragm springs, valve shims.
Industrial: Power saw blades, hacksaw blades, industrial knives.
Hardware: Retaining rings, power springs (clock springs), coil springs, disc springs (Belleville washers) .
