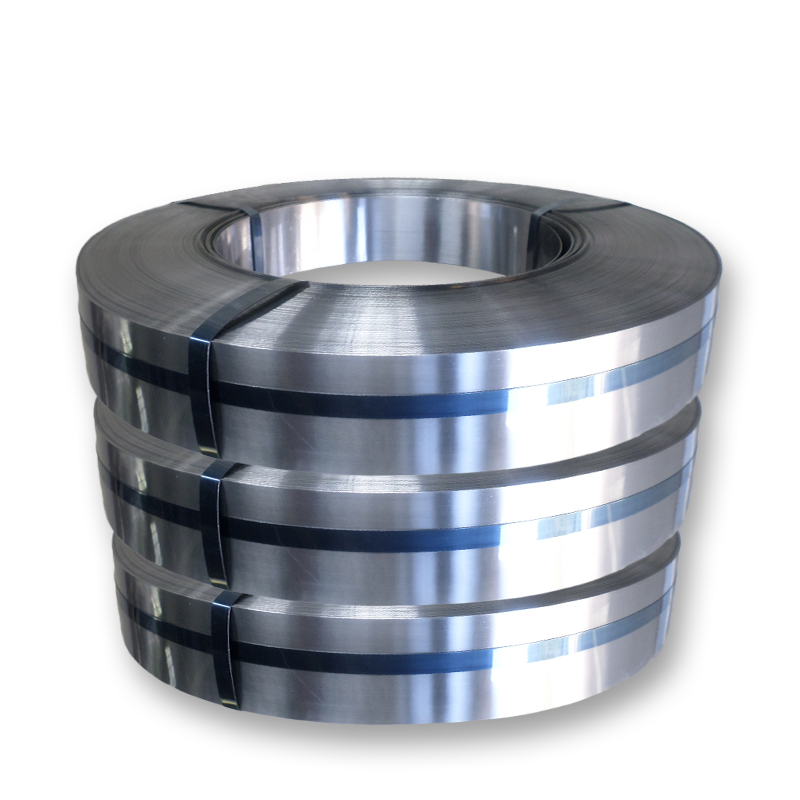

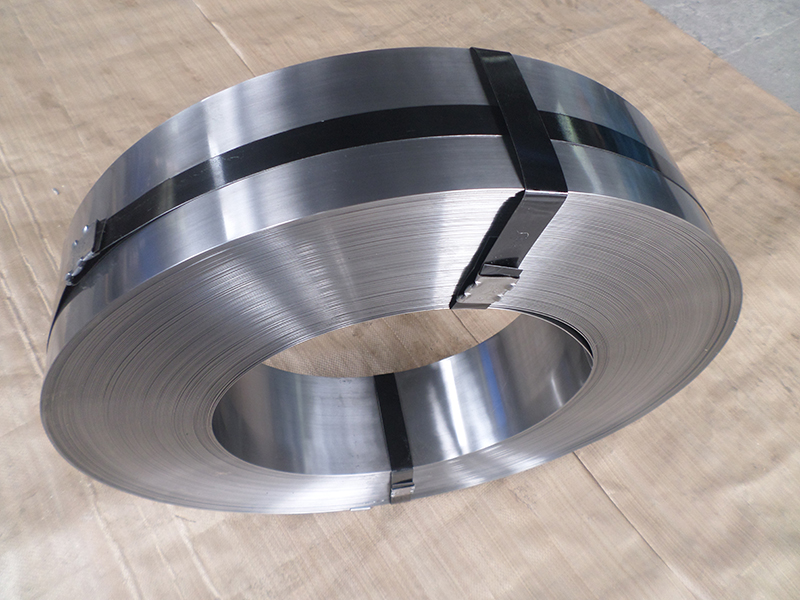

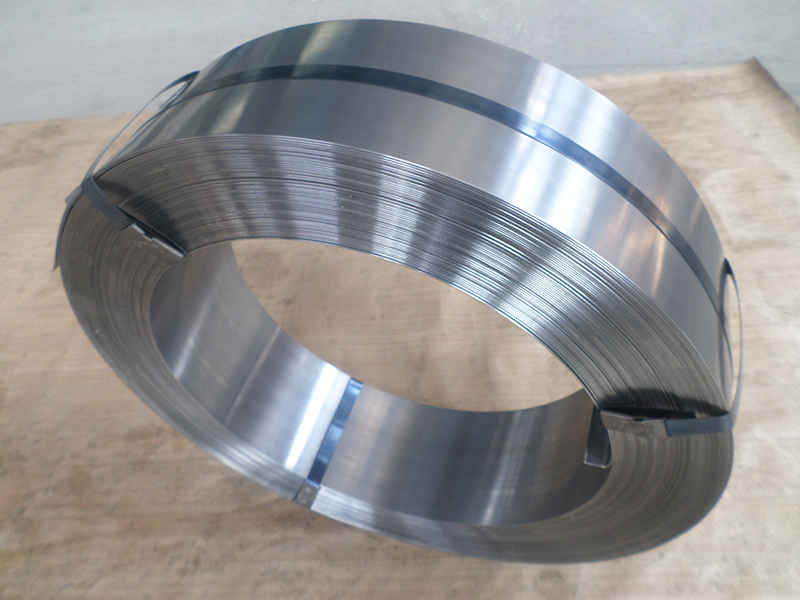

C75S CK75 hardened and tempered high carbon steel strip
Guang Zhou Cgood steel Co., Ltd, produces C75S CK75 hardened and tempered high carbon steel strip supplied below,
|
Material grade
Chemical Composition |
Carbon (C) | Silicon (Si) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Nickle (Ni) |
|
C75S, CK75
|
0.70-0.80 | 0.15-0.35 | 0.60-0.90 | max 0.035 | max 0.035 | max 0.40 | max 0.40 |
Factory production C75S CK75 Specification range
Cold rolled condtions: 21-28HRC
Annealed conditions: below 19HRC
Hardened and tempered condtions: 29-59HRC
Thickness: 0.15mm to 5.50mm
Width: 2mm to 600mm
Edge: slit, round, square edge
Surface: nature, bright, polished, white, blue, ect
Mechanical properties:
- cold-rolled and soft-annealed state, the tensile strength does not exceed 640 MPa, the elongation is at least 12%, and the Brinell hardness does not exceed 190
- cold-rolled, quenched and tempered state, the tensile strength is between 1320 and 1870 MPa, and the hardness is between 390 and 555
Heat treatment:
C75S CK75 can be processed by a variety of heat treatment methods, including annealing, normalizing and hardening & tempering.
- Annealing temperature is between 650 and 690°C;
- Oil quenching temperature is between 810 and 840°C, and tempering temperature is between 300 and 500°C.

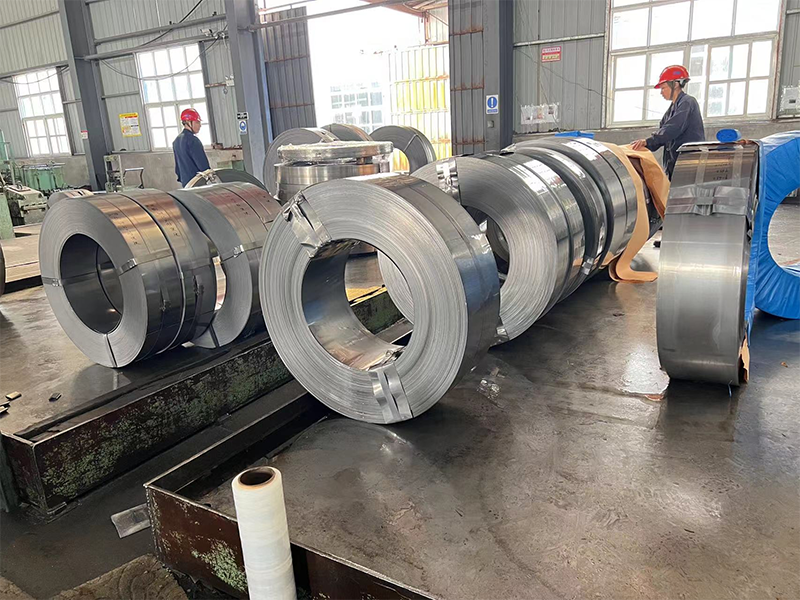

Factory Photo
Application:
C75S CK75 steels are mainly used to manufacture various springs, including coil spring, spring clips, lock hook, clock hands, band saw blade, trowels etc.
Quality Control
Guang Zhou Cgood steel Co., Ltd, has very strict high quality control on the hardened and tempered high carbon steel strip and cold rolled annealed high carbon steel strip in the production line.
Uniform Hardness and Strict size tolerance and width tolerance:
We have advanced facility to control the hardness and sizes tolerance within customers request and series of equipment to test material machnical properties strictly and make record to the test result.
Flatness and straightness Control
We performa every step necessary to make sheets virtually flat. We have numerous in-house levelling systems, each one designed to flatten metal within its own optimum thickness range.
Safety package & delivery on-time
Each coil is oiled and wrapped in plastic film and then wrapped with anti-rust paper and put into 20ft container. All orders are scheduled to finish and delivery on-time.
